Technische specificaties
Processor
| Processorfabrikant | Intel |
| Processor socket | LGA 1700 |
| Compatibele processors | Intel Celeron,Intel Pentium Gold |
| Supported processor sockets | LGA 1700 |
| Maximaal intern geheugen ondersteund door processor | 192 |
Geheugen
| Ondersteunde geheugen types | DDR5-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen kanaal | Dual-channel |
| ECC-compatibiliteit | non-ECC |
| Supported memory clock speeds | 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 |
| Ondersteunde geheugenkloksnelheid (max) | 7200 |
| Maximum intern geheugen | 192 |
| Niet gebufferd geheugen | Y |
Opslag-controllers
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2,PCI Express |
| RAID support | Y |
| Soorten RAID | 0,5,10 |
Grafisch
| Ondersteuning voor parallel processing | Not supported |
Interne aansluitingen
| USB 2.0 aansluitingen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 7 |
| Aansluiting voor audiopaneel aan voorzijde | Y |
| Voorpaneel-connector | Y |
| Aansluiting voor CPU koeler | Y |
| Chassis intrusion aansluiting | Y |
| TPM connector | Y |
| RGB LED-aansluitrail | Y |

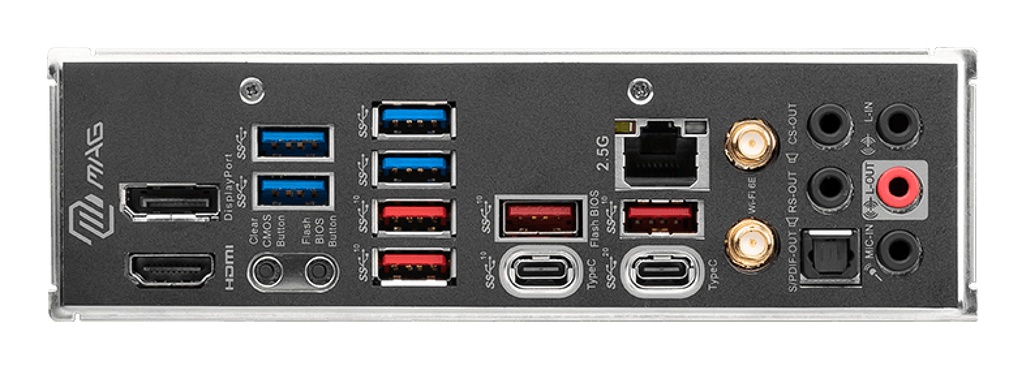

Aansluitingen achterzijde
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 4 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.1 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| S/PDIF-uitgang | Y |
Netwerk
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wifi | Y |
| Wifi-standaard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standaarden | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Bluetooth | Y |
| Bluetooth-versie | 5.3 |
Kenmerken
| Chipset moederbord | Intel Z790 |
| Audio-uitgangskanalen | 7.1 |
| Kleur van het product | Black |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Ondersteunt Windows | Windows 10 x64,Windows 11 x64 |
Uitbreidingsmodules
| PCI Express x1 (Gen 4.x) sleuven | 1 |
| PCI Express x16 (Gen 5.x) sleuven | 2 |
| Aantal M.2 (M) slots | 4 |
BIOS
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 256 |
| ACPI version | 6.4 |
| Systeem Management BIOS (SMBIOS) versie | 3.5 |
Gewicht en omvang
| Breedte | 243.84 |
| Diepte | 304.8 |
Inhoud van de verpakking
| Meegeleverde kabels | SATA |
