Technische specificaties
Processor
| Processorfabrikant | AMD |
| Processor socket | Socket AM4 |
| Compatibele processors | AMD Ryzen 3000 Series |
| Max. aantal SMP-processoren | 1 |
Geheugen
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dual-channel |
| ECC-compatibiliteit | ECC & non-ECC |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 |
| Maximum intern geheugen | 128 |
| Niet gebufferd geheugen | Y |
Opslag-controllers
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | SATA III |
| RAID support | Y |
| Soorten RAID | 0,1,10 |
Grafisch
| Maximum geheugen grafische adapter | 16000 |
| Ondersteuning voor parallel processing | 2-Way CrossFireX |
| Ingebouwde grafische adapter | N |
| Maximum resolutie | 4096 x 2160 |
Interne aansluitingen
| USB 2.0 aansluitingen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| Aantal SATA III connectors | 6 |
| Aansluiting voor audiopaneel aan voorzijde | Y |
| ATX Power connector (24-pin) | Y |
| Aansluiting voor CPU koeler | Y |
| Aansluitingen voor behuizingsventilatoren | 6 |
| Chassis intrusion aansluiting | Y |
| TPM connector | Y |
| 12V vermogen-connector | Y |
| RGB LED-aansluitrail | Y |

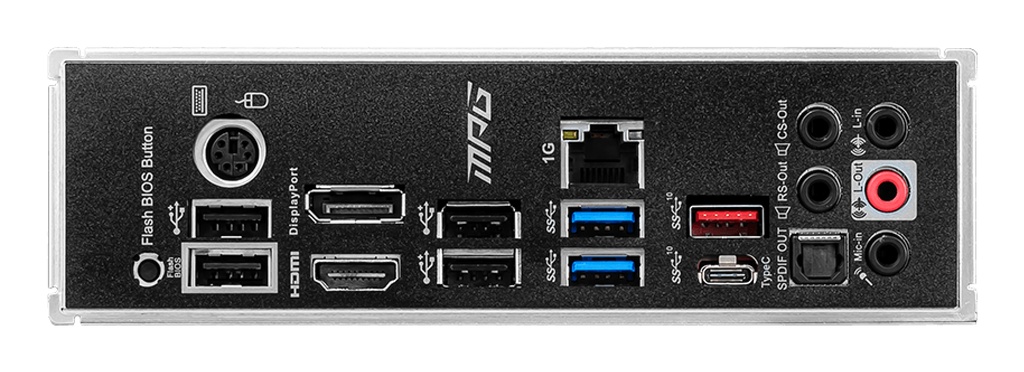

Aansluitingen achterzijde
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PS/2 poort(en) | 1 |
| Aantal HDMI-poorten | 1 |
| Aantal DisplayPorts | 1 |
| S/PDIF-uitgang | Y |
| Digitale audio, optische uitgang | 1 |
Netwerk
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111H |
| Wifi | N |
| Wifi-standaard | Not available |
Kenmerken
| Chipset moederbord | AMD B550 |
| Audiochip | Realtek ALC892 |
| Audio-uitgangskanalen | 7.1 |
| Kleur van het product | Black |
| PC gezondheids monitor | CPU,FAN,Temperature |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | AMD |
| Aantal montagegaten | 9 |
Uitbreidingsmodules
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
| Aantal M.2 (M) slots | 2 |
BIOS
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Y |
Logistieke gegevens
| Code geharmoniseerd systeem (HS) | 84733020 |
Gewicht en omvang
| Breedte | 305 |
| Diepte | 244 |
| Hoogte | 65 |
Inhoud van de verpakking
| Meegeleverde kabels | SATA |
| Meegeleverde drivers | Y |
Overige specificaties
| Gewicht | 1000 |
