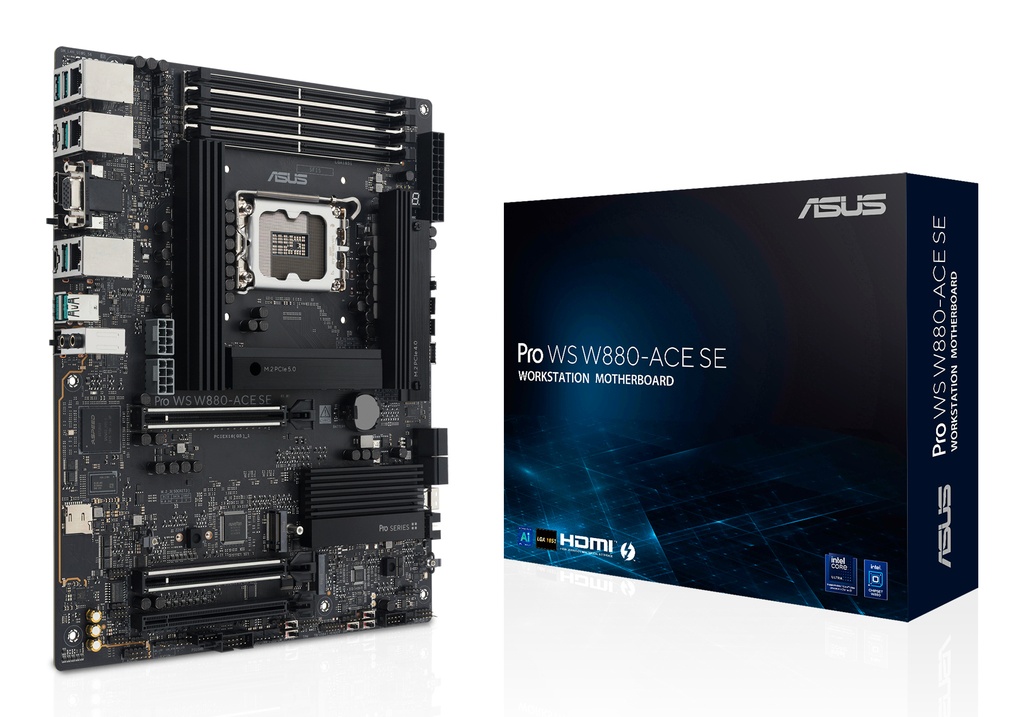

The Pro WS W880-ACE SE empowers workstation users of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 8+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including Thunderbolt™ 4 port, dual 2.5Gb Ethernet.
The workstation motherboard is engineered to support dual graphics cards, making it an ideal choice for content creation, AI and deep learning, and IT management.
Thunderbolt™ Connectivity
The Pro WS W880-ACE SE features a Thunderbolt™ 4 port, offering high-speed data transfers up to 40Gbps. This allows large files and datasets to be transferred in seconds, boosting productivity for workstation users, AI and deep learning experts, and IT managers. Thunderbolt™ 4 also supports multiple 4K displays or a single 8K display for clear and smooth visuals, essential for professional applications. Its strong compatibility with existing Thunderbolt™ and USB devices simplifies connectivity and management.
PCIe 5.0 Support
The Pro WS W880-ACE SE offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets.
Remote Control Solution
Onboard BMC
The Pro WS W880-ACE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries.
ASUS Control Center Express
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures, and it comes with an active fan to enhance thermal efficiency.
The Core of Your Powerful Workstation
Designed to meet the needs of high-core-count CPUs, the Pro WS W880-ACE SE features 8(80A)+1(80A)+2(80A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).
Eight Layered PCB design
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
ProCool II Connectors
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.
Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
Performance Boost
NPU Boost
The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%. 1
Memory
The Pro WS W880-ACE SE enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.
DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.2
Intelligent AI Solutions
AI Cooling II
Balance the thermals and acoustics of any build with a single click.
AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.3
Easy PC DIY
M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.
Four Onboard M.2 Slots
The Pro WS W880-ACE SE features one PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.4
24/7 Reliability
Optimized for 24/7 operation, the Pro WS W880-ACE SE motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.
The workstation motherboard is engineered to support dual graphics cards, making it an ideal choice for content creation, AI and deep learning, and IT management.
Thunderbolt™ Connectivity
The Pro WS W880-ACE SE features a Thunderbolt™ 4 port, offering high-speed data transfers up to 40Gbps. This allows large files and datasets to be transferred in seconds, boosting productivity for workstation users, AI and deep learning experts, and IT managers. Thunderbolt™ 4 also supports multiple 4K displays or a single 8K display for clear and smooth visuals, essential for professional applications. Its strong compatibility with existing Thunderbolt™ and USB devices simplifies connectivity and management.
PCIe 5.0 Support
The Pro WS W880-ACE SE offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets.
Remote Control Solution
Onboard BMC
The Pro WS W880-ACE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries.
ASUS Control Center Express
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures, and it comes with an active fan to enhance thermal efficiency.
The Core of Your Powerful Workstation
Designed to meet the needs of high-core-count CPUs, the Pro WS W880-ACE SE features 8(80A)+1(80A)+2(80A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).
Eight Layered PCB design
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
ProCool II Connectors
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.
Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
Performance Boost
NPU Boost
The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%. 1
Memory
The Pro WS W880-ACE SE enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.
DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.2
Intelligent AI Solutions
AI Cooling II
Balance the thermals and acoustics of any build with a single click.
AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.3
Easy PC DIY
M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.
Four Onboard M.2 Slots
The Pro WS W880-ACE SE features one PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.4
24/7 Reliability
Optimized for 24/7 operation, the Pro WS W880-ACE SE motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Cooling type | Passive |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Maximum resolution | 3840 x 2160 |
| Parallel processing technology support | Not supported |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Geheugen | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | non-ECC |
| Maximum internal memory | 256 |
| Supported memory clock speed (max) | 9066 |
| Unbuffered memory | Yes |
| Maximaal intern geheugen per slot | 64 |
| Netwerk | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Wi-Fi | N |
| Poorten & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| DisplayPort version | 2.1 |
| VGA (D-Sub) ports quantity | 1 |
| Hoeveelheid Thunderbolt ports | 1 |
| Energie | |
|---|---|
| Power source type | ATX |
| Gewicht en omvang | |
|---|---|
| Width | 305 |
| Depth | 244 |
| Inhoud van de verpakking | |
|---|---|
| Cables included | SATA |
| Kenmerken | |
|---|---|
| Component for | Workstation |
| Motherboard chipset | Intel W880 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 10 x64,Windows 11 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,PCI Express 4.0,PCI Express 5.0,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Interne aansluitingen | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| 12V power connector | Y |
| Front panel connector | Y |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Y |
| Aantal EPS-voedingsaansluitingen (8-pins) | 2 |
| Number of water pump connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Thunderbolt headers | 1 |
| Chassis intrusion connector | Y |
| Number of COM connectors | 1 |
| Geiïntegreerde SAS ports | 1 |
| Aantal temperatuursensorkoppen | 1 |
| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 1 |
| Lijningang | Yes |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Clear CMOS knop | Yes |
| Uitbreidingsmodules | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 3e M.2 grootste sleutelgrootte | 2280 |
| 3e M.2 hoogste PCI Express-generatie | 4.0 |
| 4e M.2 grootste sleutelgrootte | 2280 |
| 4e M.2 hoogste PCI Express-generatie | 4.0 |
