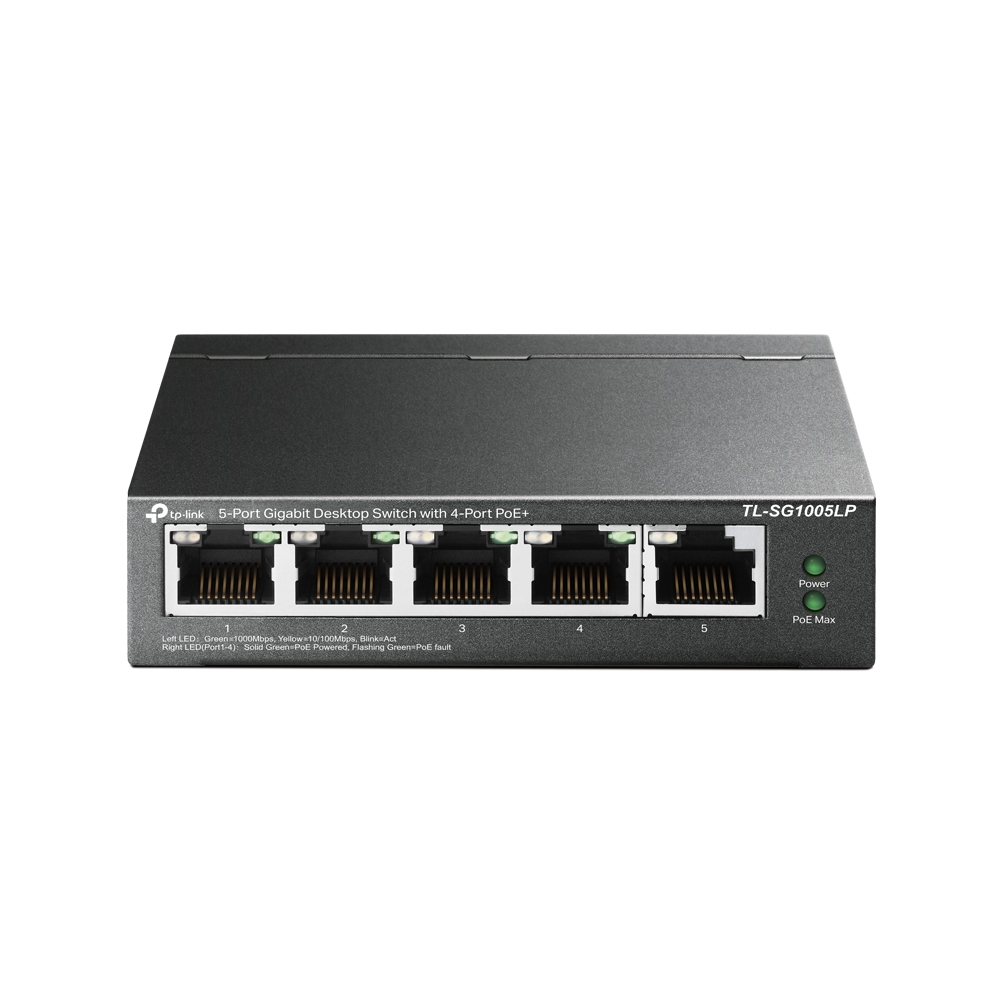

TP-Link TL-SG1005LP | Unmanaged | Gigabit Ethernet (10/100/1000 Mbps) | Power over Ethernet (PoE)

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
  • AC input voltage
  • Copper ethernet cabling technology
  • AC input frequency
  • Package type
  • Rack mounting
  • Switch type
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity
  • Basic switching RJ-45 Ethernet ports type
  • 10G support
  • Flow control support
  • Auto-negotiation
  • Switching capacity
  • MAC address table
  • Jumbo frames support
  • Jumbo frames
  • IGMP snooping
  • Stackable
  • Power source
  • DC input voltage
  • Power over Ethernet (PoE)
  • Forwarding rate
  • Wall mountable
  • Store-and-forward
  • Power over Ethernet plus (PoE+) ports quantity
  • Cable types supported
  • Fanless
  • Auto MDI/MDI-X
  • User guide
  • Gigabit Ethernet (copper) ports quantity
  • MAC address auto-learning supported
  • Sustainability compliance
  • Maximum cable length
  • MAC address auto-aging supported
Add to wishlist
Price
50.80 € 50.80 €

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design
Rack mounting N
Stackable N
Wall mountable Y
Netwerk
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
10G support N
Flow control support Y
Auto-negotiation Y
Cable types supported Cat3,Cat4,Cat5,Cat5e,Cat6
Auto MDI/MDI-X Y
MAC address auto-learning supported Y
MAC address auto-aging supported Y
Poorten & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
Energie
AC input voltage 100 - 240
AC input frequency 50/60
Power source DC/PoE
DC input voltage 53.5
Beveiliging
IGMP snooping Y
Inhoud van de verpakking
User guide Y
Duurzaamheid
Sustainability compliance Y
Verpakking
Package type Box
Prestatie
Fanless Y
Maximum cable length 100
Beheerfuncties
Switch type Unmanaged
Quality of Service (QoS) support Y
Data-uitwisseling
Switching capacity 10
MAC address table 2000
Jumbo frames support Y
Jumbo frames 16000
Forwarding rate 7.44
Store-and-forward Y
Power over Ethernet (PoE)
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 4
