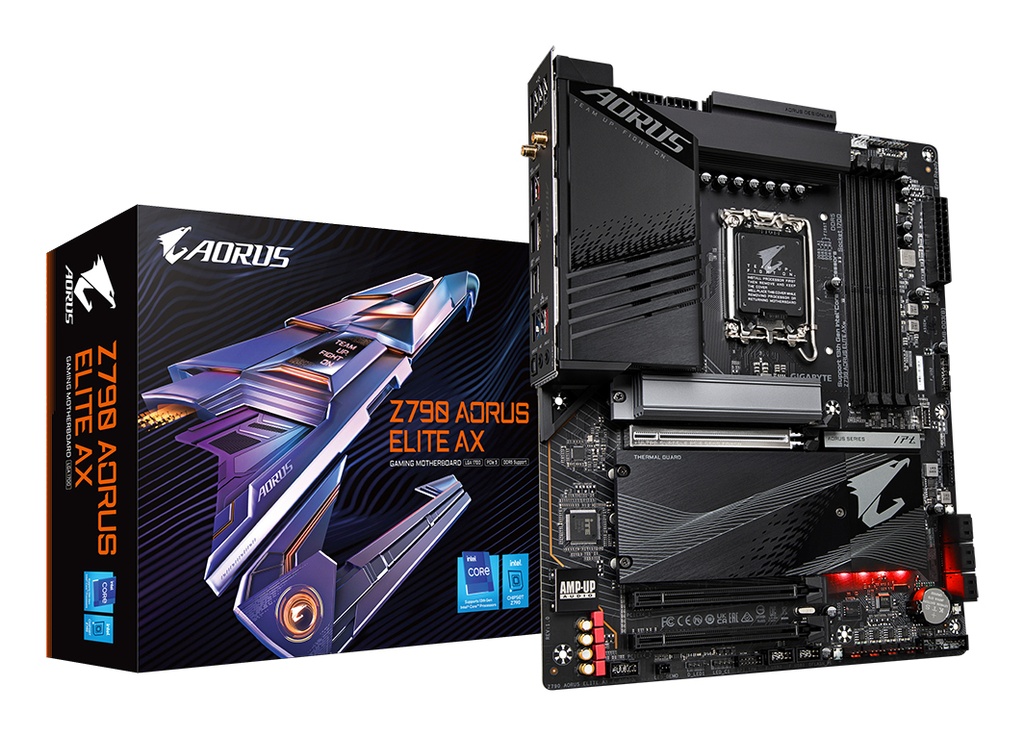

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold |
| Supported processor sockets | LGA 1700 |
| Maximaal intern geheugen ondersteund door processor | 192 |
| Geheugen | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & non-ECC |
| Supported memory clock speeds | 7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 |
| Maximum internal memory | 192 |
| Supported memory clock speed (max) | 7600 |
| Unbuffered memory | Yes |
| Grafisch | |
|---|---|
| On-board graphics card | No |
| Netwerk | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Y |
| Bluetooth | Y |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Poorten & interfaces | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Accu/Batterij | |
|---|---|
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Gewicht en omvang | |
|---|---|
| Width | 305 |
| Depth | 244 |
| Height | 35 |
| Inhoud van de verpakking | |
|---|---|
| Cables included | SATA |
| Bundled software | Norton Internet Security |
| Batteries included | Y |
| Kenmerken | |
|---|---|
| Country of origin | China |
| Component for | PC |
| Motherboard chipset | Intel Z790 |
| Audio output channels | 7.1 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Verpakking | |
|---|---|
| Package width | 335 |
| Package depth | 270 |
| Package height | 80 |
| Package weight | 2320 |
| Logistieke gegevens | |
|---|---|
| Products per shipping (inner) case | 1 |
| Prestatie | |
|---|---|
| DirectX version | 12.0 |
| Warranty period | 3 |
| HDCP | Y |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 10 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Interne aansluitingen | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| TPM connector | Y |
| 12V power connector | Y |
| Front panel connector | Y |
| EPS power connector (8-pin) | Y |
| RGB LED pin header | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 6 |
| Thunderbolt headers | 2 |
| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 2 |
| Microphone in | Y |
| WiFi-AP antenna jack | 2 |
| S/PDIF-uitgang | Yes |
| Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
| USB connector type | USB Type-A,USB Type-C |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Clear CMOS knop | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Uitbreidingsmodules | |
|---|---|
| Number of M.2 (M) slots | 4 |
| PCI Express x16 slots | 3 |
