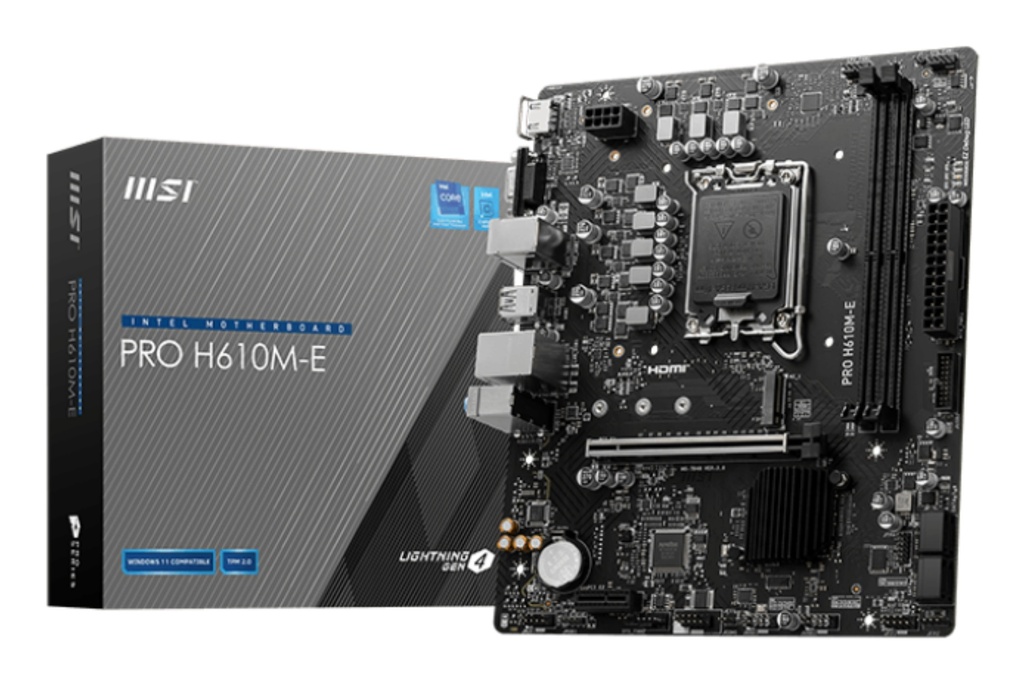

MSI PRO H610M-E moederbord Intel H610 LGA 1700 micro ATX

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

  • Processor manufacturer
  • Ethernet LAN
  • USB 2.0 ports quantity
  • HDMI ports quantity
  • HDMI version
  • Ethernet LAN (RJ-45) ports
  • Cooling type
  • Component for
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • Windows operating systems supported
  • Ethernet interface type
  • Wi-Fi
  • VGA (D-Sub) ports quantity
  • Processor socket
  • Compatible processor series
  • Supported processor sockets
  • Supported memory types
  • Number of memory slots
  • Memory slots type
  • Memory channels
  • ECC сompatibility
  • Supported memory clock speeds
  • Maximum internal memory
  • Supported storage drive types
  • Supported storage drive interfaces
  • USB 2.0 connectors
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • Number of SATA III connectors
  • Front panel audio connector
  • ATX Power connector (24-pin)
  • CPU fan connector
  • Motherboard chipset
  • Audio output channels
  • Motherboard form factor
  • Motherboard chipset family
  • BIOS type
  • Drivers included
  • RAID support
  • RAID levels
  • Number of chassis fan connectors
  • EPS power connector (8-pin)
  • Headphone outputs
  • Microphone in
  • BIOS memory size
  • ACPI version
  • PS/2 ports quantity
  • PCI Express x16 (Gen 4.x) slots
  • Thunderbolt headers
  • Supported memory module capacities
  • PCI Express x1 (Gen 3.x) slots
  • Number of COM connectors
  • Audio connector
Toevoegen aan verlanglijst
Prijs
84,75 € 84,75 €

Algemene voorwaarden
Geld-terug-garantie van 30 dagen
Verzending: 2-3 werkdagen

Specificaties

Design
Cooling type Active
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium G
Supported processor sockets LGA 1700
Geheugen
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility non-ECC
Supported memory clock speeds 5600
Maximum internal memory 96
Supported memory module capacities 4GB,8GB,16GB,32GB
Netwerk
Ethernet LAN Ja
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Geen

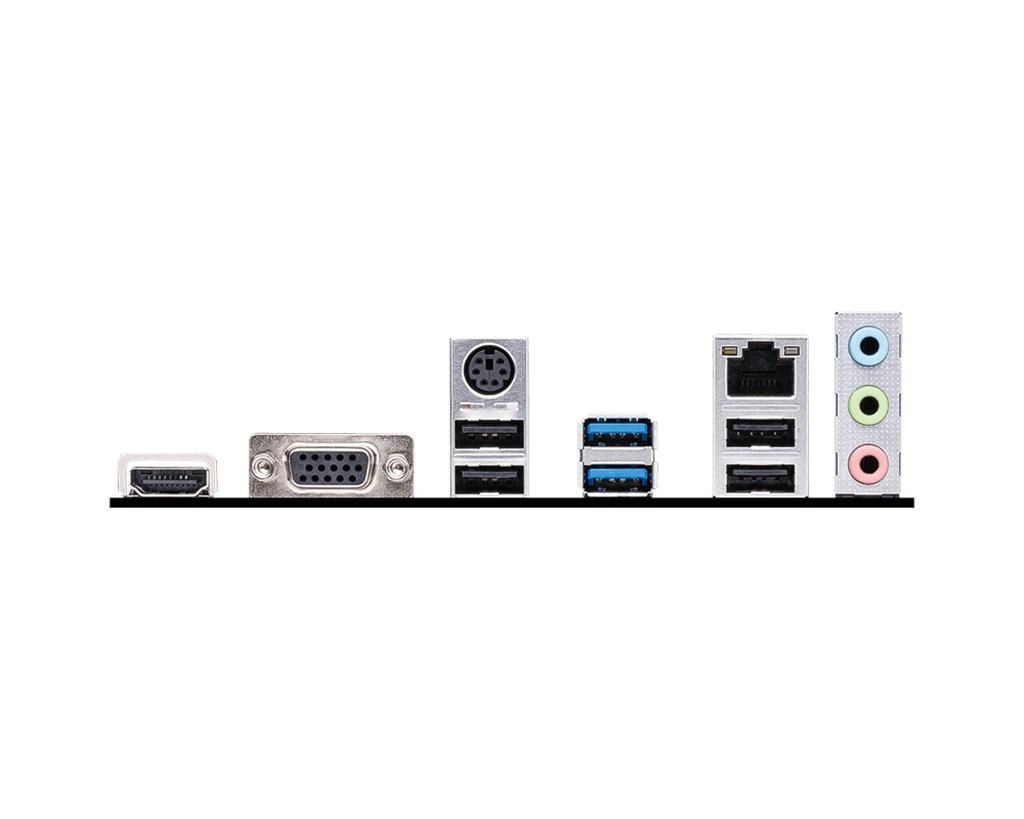

Poorten & interfaces
USB 2.0 ports quantity 4
HDMI ports quantity 1
HDMI version 1.4
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
VGA (D-Sub) ports quantity 1
Inhoud van de verpakking
Drivers included Ja
Kenmerken
Component for PC
Motherboard chipset Intel H610
Audio output channels 7.1
Motherboard form factor Micro ATX
Motherboard chipset family Intel
Minimale systeemeisen
Windows operating systems supported Windows 10,Windows 11
Opslag-controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA III
RAID support Ja
RAID levels 0,1,5,10
Interne aansluitingen
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
Front panel audio connector Ja
ATX Power connector (24-pin) Ja
CPU fan connector Ja
Number of chassis fan connectors 2
EPS power connector (8-pin) Ja
Thunderbolt headers 2
Number of COM connectors 2
Audio connector Ja
Aansluitingen achterzijde
Headphone outputs 2
Microphone in Ja
PS/2 ports quantity 1
BIOS
BIOS type UEFI AMI
BIOS memory size 256
ACPI version 6.4
Uitbreidingsmodules
PCI Express x16 (Gen 4.x) slots 1
PCI Express x1 (Gen 3.x) slots 2
