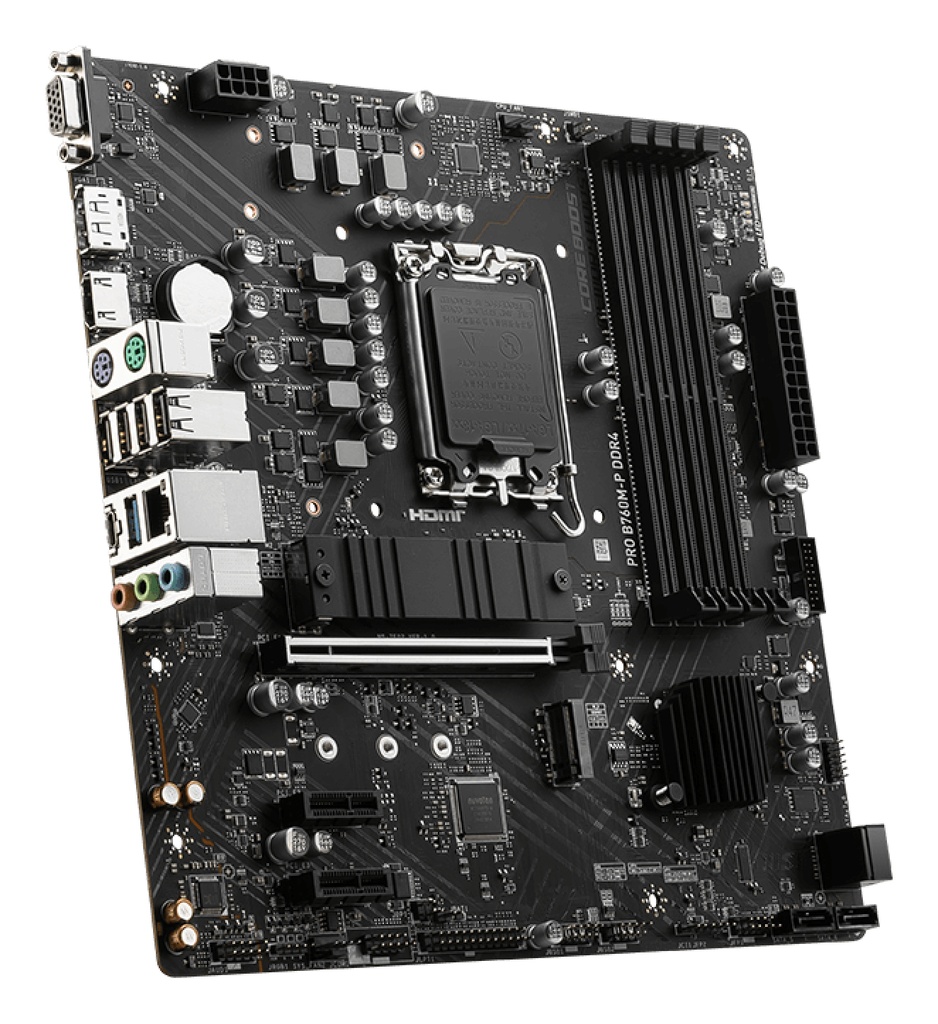

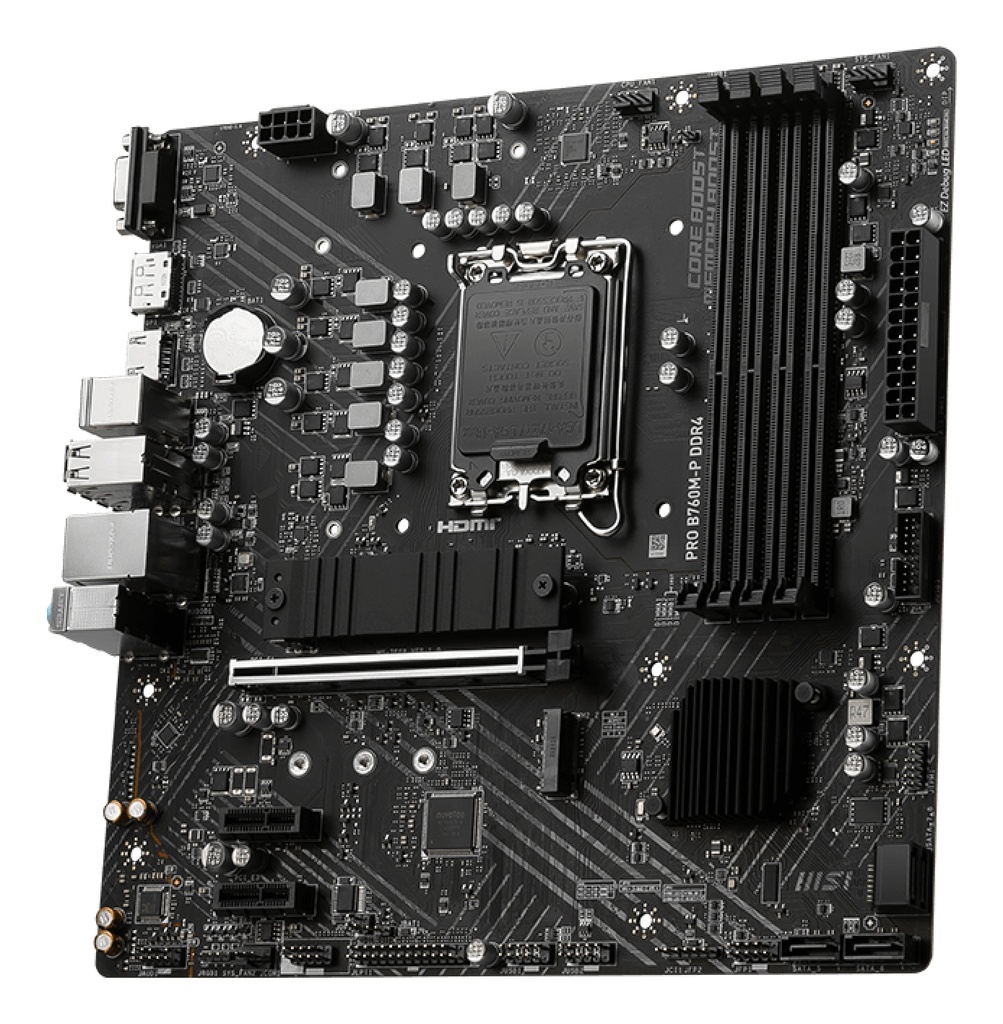

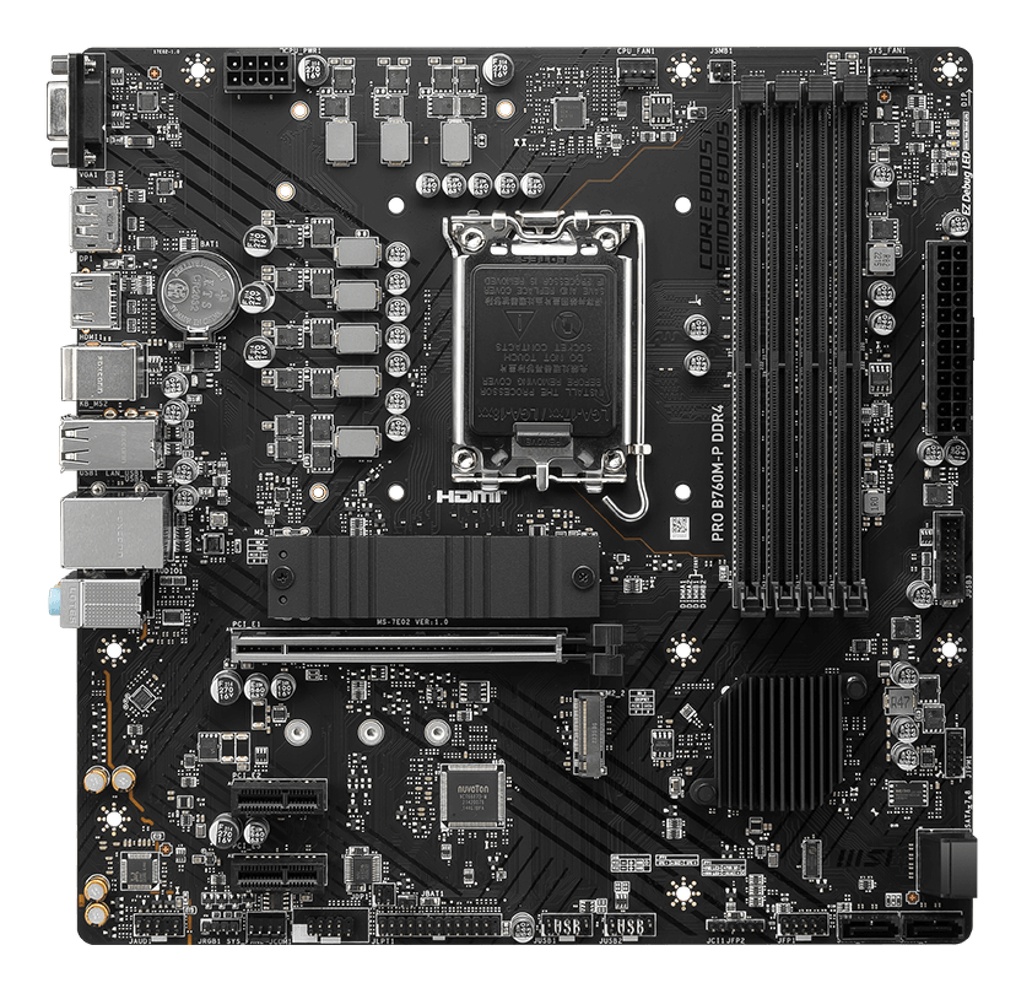

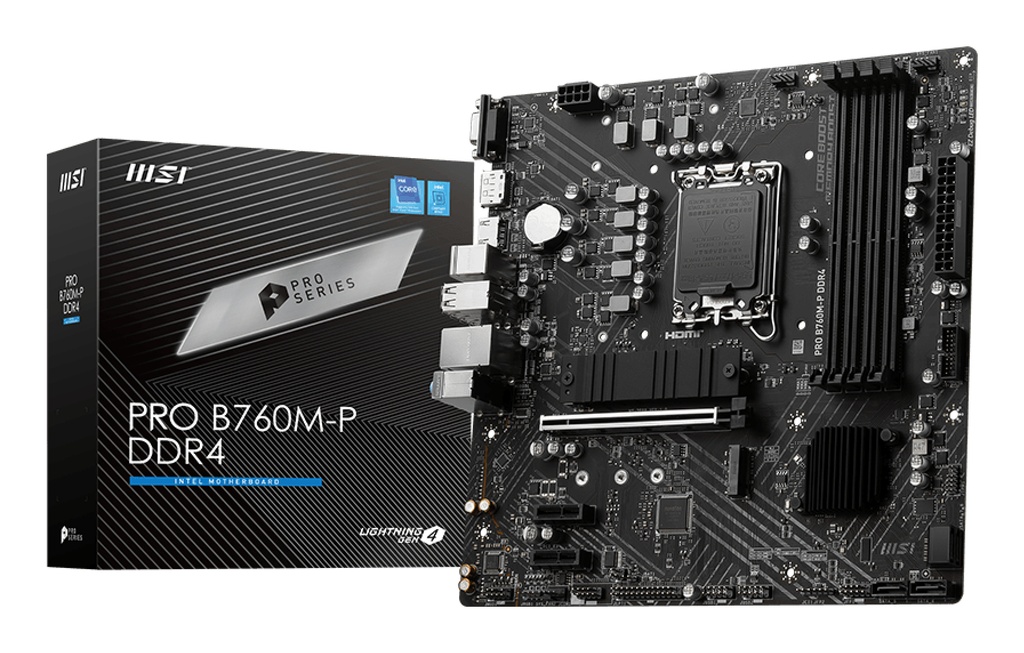

MSI PRO B760M-P DDR4 moederbord Intel B760 LGA 1700 micro ATX

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
  • Processor manufacturer
  • Ethernet LAN
  • USB 2.0 ports quantity
  • HDMI ports quantity
  • HDMI version
  • Ethernet LAN (RJ-45) ports
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • Component for
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • Windows operating systems supported
  • DisplayPorts quantity
  • DisplayPort version
  • Ethernet interface type
  • Wi-Fi
  • Processor socket
  • Supported processor sockets
  • Supported memory types
  • Number of memory slots
  • Memory slots type
  • Memory channels
  • ECC сompatibility
  • Supported memory clock speeds
  • Maximum internal memory
  • Supported storage drive interfaces
  • USB 2.0 connectors
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • Number of SATA III connectors
  • Front panel audio connector
  • ATX Power connector (24-pin)
  • CPU fan connector
  • TPM connector
  • Motherboard chipset
  • Audio chip
  • Audio output channels
  • Motherboard form factor
  • Motherboard chipset family
  • BIOS type
  • Supported memory clock speed (max)
  • RAID support
  • RAID levels
  • Front panel connector
  • RGB LED pin header
  • Number of M.2 (M) slots
  • BIOS memory size
  • PCI Express x1 (Gen 3.x) slots
  • Maximum number of SMP processors
  • PCI Express x16 slots
Toevoegen aan verlanglijst
Prijs
133,03 € 133,03 €

Algemene voorwaarden
Geld-terug-garantie van 30 dagen
Verzending: 2-3 werkdagen

Specificaties

Processor
Processor manufacturer Intel
Processor socket LGA 1700
Supported processor sockets LGA 1700
Maximum number of SMP processors 1
Geheugen
Supported memory types DDR4-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility non-ECC
Supported memory clock speeds 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133
Maximum internal memory 128
Supported memory clock speed (max) 4800
Netwerk
Ethernet LAN Ja
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Geen

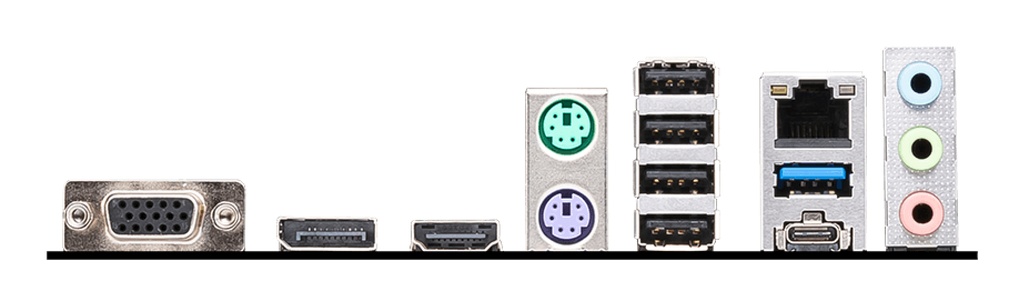

Poorten & interfaces
USB 2.0 ports quantity 4
HDMI ports quantity 1
HDMI version 1.4
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
DisplayPorts quantity 1
DisplayPort version 1.4
Kenmerken
Component for PC
Motherboard chipset Intel B760
Audio chip Realtek ALC897
Audio output channels 7.1
Motherboard form factor Micro ATX
Motherboard chipset family Intel
Minimale systeemeisen
Windows operating systems supported Windows 10,Windows 11
Opslag-controllers
Supported storage drive interfaces M.2,SATA III
RAID support Ja
RAID levels 0,1,5,10
Interne aansluitingen
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
Front panel audio connector Ja
ATX Power connector (24-pin) Ja
CPU fan connector Ja
TPM connector Ja
Front panel connector Ja
RGB LED pin header Ja
BIOS
BIOS type UEFI AMI
BIOS memory size 256
Uitbreidingsmodules
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 slots 2
