Specificaties
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Maximum resolution | 4096 x 2160 |
| Parallel processing technology support | Not supported |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Geheugen | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | non-ECC |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200,8400 |
| Maximum internal memory | 128 |
| Supported memory clock speed (max) | 8400 |
| Unbuffered memory | Ja |
| Maximaal intern geheugen per slot | 64 |
| Grafisch | |
|---|---|
| On-board graphics card | Geen |
| Netwerk | |
|---|---|
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Ja |
| Bluetooth | Ja |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| WLAN controller model | Realtek RTL8922AE |
| Poorten & interfaces | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Accu/Batterij | |
|---|---|
| Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Gewicht en omvang | |
|---|---|
| Breedte | 170 |
| Diepte | 170 |
| Hoogte | 35 |
| Gewicht | 1300 |
| Inhoud van de verpakking | |
|---|---|

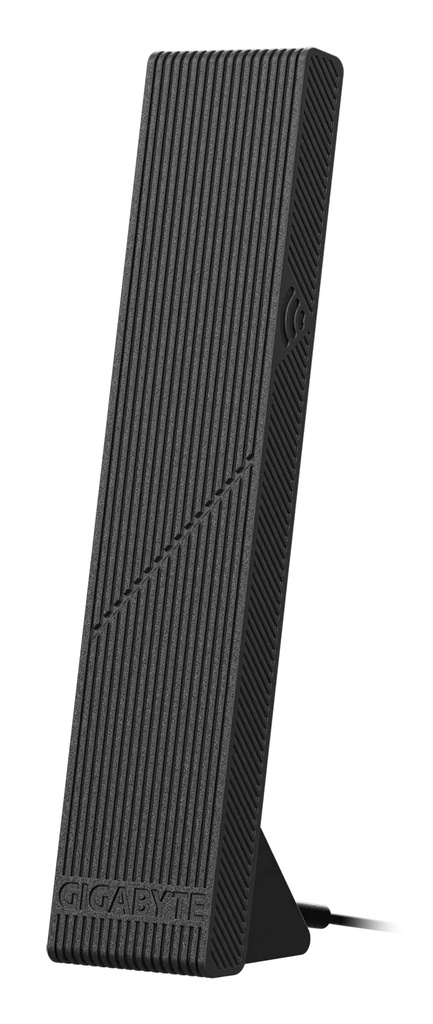

| Antenne inbegrepen | Ja |
| Screws included | Ja |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Ja |
| Kenmerken | |
|---|---|
| Country of origin | China |
| Component for | PC |
| Motherboard chipset | AMD B850 |
| Audio output channels | 7.1 |
| Motherboard form factor | Mini ITX |
| Motherboard chipset family | AMD |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Logistieke gegevens | |
|---|---|
| Products per shipping (inner) case | 1 |
| Prestatie | |
|---|---|
| DirectX version | 12.0 |
| Warranty period | 3 |
| HDCP | Ja |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 11 x64 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 4 |
| RAID support | Ja |
| RAID levels | 0,1,10 |
| Interne aansluitingen | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Ja |
| ATX Power connector (24-pin) | Ja |
| CPU fan connector | Ja |
| 12V power connector | Ja |
| Front panel connector | Ja |
| Number of CPU fan connectors | 2 |
| EPS power connector (8-pin) | Ja |
| Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
| RGB LED pin header | Ja |
| Number of RGB LED pin headers | 4 |
| Number of water pump connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 2 |

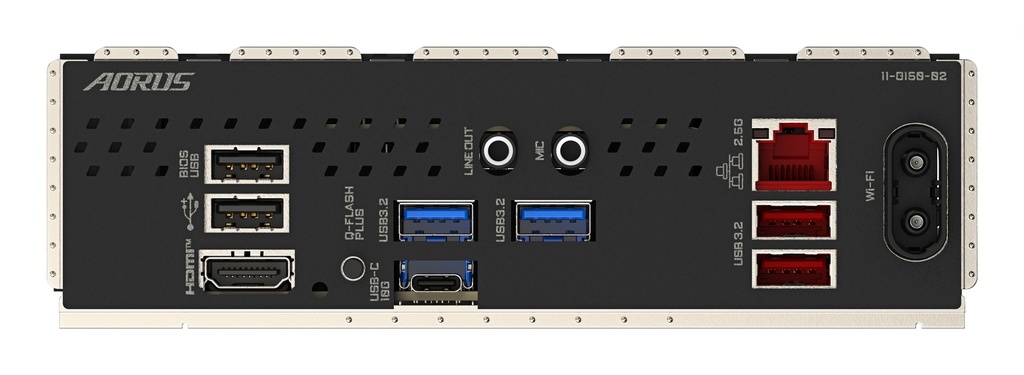

| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Ja |
| WiFi-AP antenna jack | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Ja |
| Clear CMOS knop | Ja |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Uitbreidingsmodules | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
