Exceptional quiet, superior features
Pure Power 12 1000W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Pure Power 12 1000W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| Number of fans | 1 |
| Cooling type | Active |
| Fan diameter | 120 |
| Poorten & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Lengte stroomkabel moederbord | 550 |
| Number of SATA power connectors | 6 |
| Lengte SATA-stroomkabel | 500,650,800,950 |
| Lengte stroomkabel randapparaat (Molex) | 800 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12-pin) | 1 |
| Lengte PCI Express-stroomkabel | 600 |
| CPU power connector (4+4 pin) | Ja |
| Lengte CPU-stroomkabel | 600 |
| Cabling type | Non-Modular |
| Energie | |
|---|---|
| Total power | 1000 |
| AC input voltage | 110 - 240 |
| AC input frequency | 50/60 |
| 80 PLUS certification | 80 PLUS Gold |
| Piekvermogen | 1050 |
| Maximale ingangsstroom (@110V) | 12 |
| Maximale ingangsstroom (@220V) | 6 |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 |
| Combined power (+12V) | 1000 |
| Combined power (+5V) | 120 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 22 |
| Max output current (+12V1) | 83.4 |
| Max output current (+5V) | 22 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 3 |
| Hold time | 17.82 |
| Gewicht en omvang | |
|---|---|
| Breedte | 86 |
| Diepte | 160 |
| Hoogte | 150 |
| Gewicht | 2800 |
| Inhoud van de verpakking | |
|---|---|

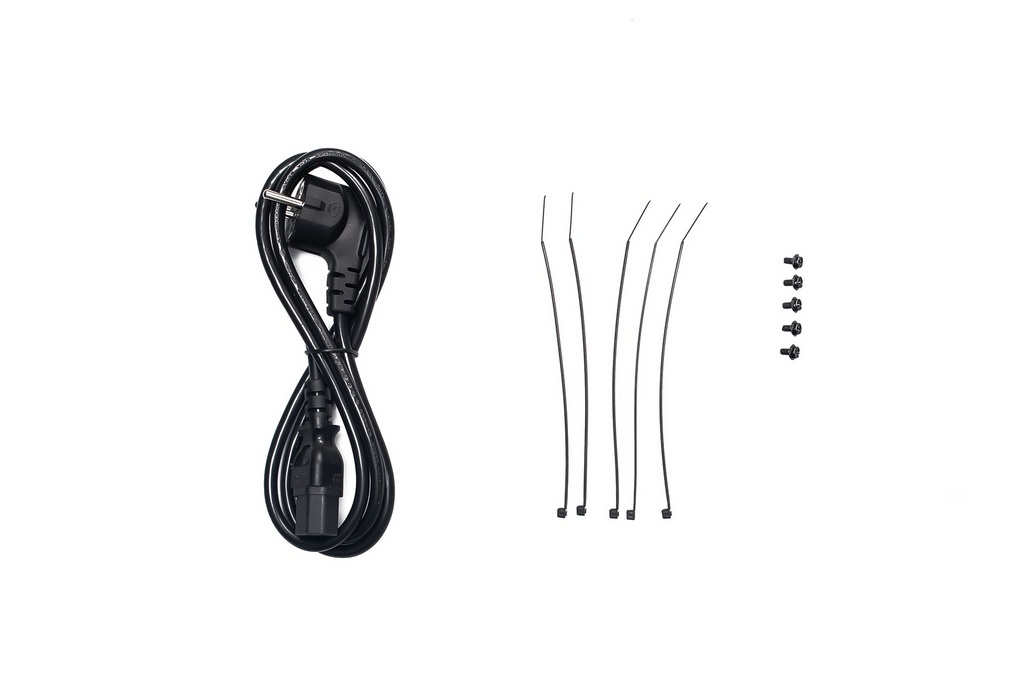

| Meegeleverde kabels | AC |
| Screws included | Ja |
| Inclusief kabelbinder(s) | Ja |
| Kenmerken | |
|---|---|
| Efficientie | 90.6 |
| Geluidsniveau | 31.6 |
| Stroomspanning bescherming | Over current,Over power,Over voltage,Overheating,Short circuit,Surge & inrush protection (SIP),Under voltage |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -20 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 90 |
| Luchtvochtigheid bij opslag | 0 - 95 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CB,CE,Federal Communications Commission (FCC),RoHS,UKCA,WEEE,cTUVus |
| Duurzaamheid | |
|---|---|
| Duurzaamheidscertificaten | ENERGY STAR,ErP,Triman |
| Verpakking | |
|---|---|
| Breedte verpakking | 133 |
| Diepte verpakking | 320 |
| Hoogte verpakking | 210 |
| Gewicht verpakking | 3200 |
| Logistieke gegevens | |
|---|---|
| Products per shipping (inner) case | 4 |
| Shipping (inner) case width | 240 |
| Shipping (inner) case length | 560 |
| Shipping (inner) case height | 340 |
| Shipping (inner) case net weight | 13900 |
| Prestatie | |
|---|---|
| On/off switch | Ja |
| Warranty period | 10 |
| Mean time between failures (MTBF) | 100000 |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | Rifle |
| Interne aansluitingen | |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Muis | |
|---|---|
| Bedoeld voor | PC |
