Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| Housing material | Steel |
| Mounting type | Wall |
| Grafisch | |
|---|---|
| Number of displays supported | 1 |
| Gewicht en omvang | |
|---|---|
| Breedte | 410 |
| Diepte | 470 |
| Hoogte | 658 |
| Gewicht | 5700 |
| Inhoud van de verpakking | |
|---|---|
| Snelle installatiehandleiding | Ja |
| Screws included | Ja |
| Kenmerken | |
|---|---|
| Maximum weight capacity | 50 |
| Maximum screen size | 70 |
| Certificaten | |
|---|---|
| Certificering | CE |
| Verpakking | |
|---|---|
| Breedte verpakking | 220 |
| Diepte verpakking | 70 |
| Hoogte verpakking | 700 |
| Gewicht verpakking | 6000 |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 85299097 |
| Ergonomie | |
|---|---|

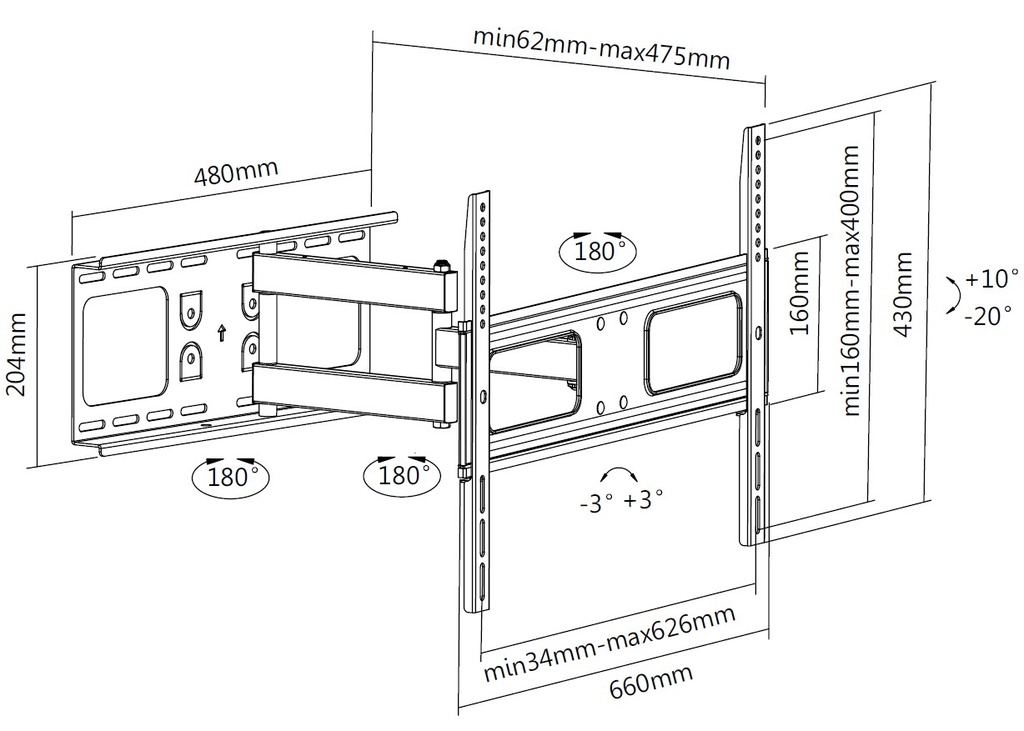

| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Swivel angle range | -90 - 90 |
| Tilt angle range | -20 - 10 |
| Afstand tot de muur (max.) | 475 |
| Afstand tot de muur (min) | 62 |
| Montage | |
|---|---|
| Minimale schermgrootte | 32 |
| Montage interface compatibiliteit (min) | 200 x 200 |
| Montage interface compatibiliteit (max) | 600 x 400 |
