Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| LED-indicatoren | Activity,Link,Power |
| Rack mounting | Geen |
| Housing material | Metal |
| Wall mountable | Ja |
| Netwerk | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| 10G support | Geen |
| Flow control support | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-sensing | Ja |
| Kabellengtedetectie | Ja |
| Poorten & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

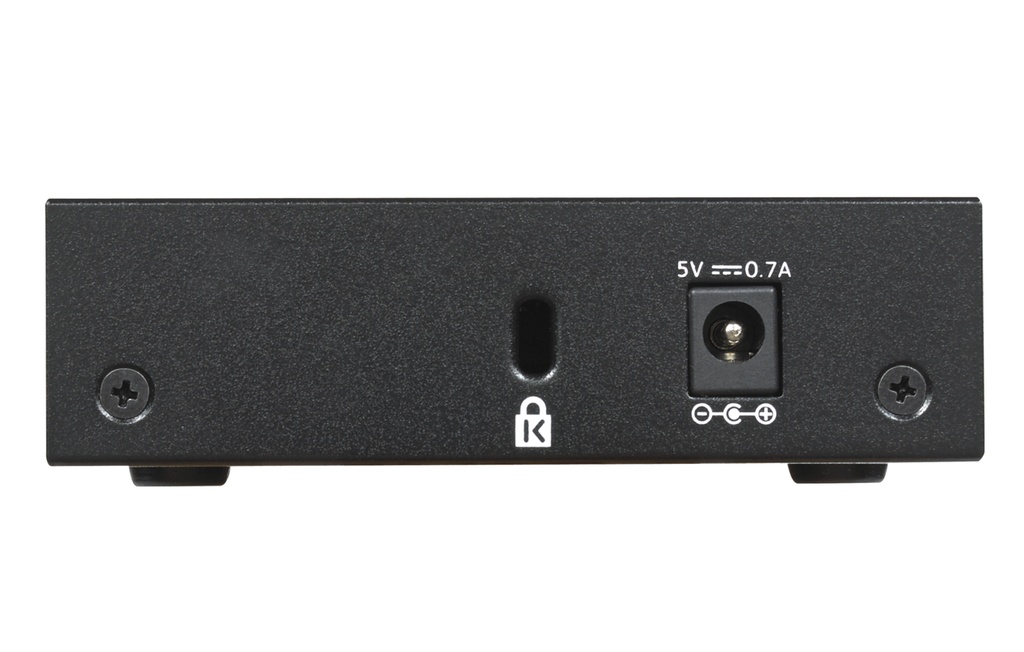

| Power connector | DC-in jack |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Energie | |
|---|---|
| Power consumption (max) | 2.15 |
| Gewicht en omvang | |
|---|---|
| Breedte | 101 |
| Diepte | 94 |
| Hoogte | 29 |
| Gewicht | 250 |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -20 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 90 |
| Luchtvochtigheid bij opslag | 0 - 95 |
| Hoogte, in bedrijf | 0 - 3000 |
| Heat dissipation | 7.35 |
| Certificaten | |
|---|---|
| Certificering | CE Mark FCC Part 15 Class B IC Class B RCM VCCI |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 85176990 |
| Prestatie | |
|---|---|
| Mean time between failures (MTBF) | 3831422 |
| Beheerfuncties | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Ja |
| Data-uitwisseling | |
|---|---|
| Switching capacity | 10 |
| MAC address table | 2000 |
| Jumbo frames support | Ja |
| Jumbo frames | 9216 |
| Forwarding rate | 1.448 |
| Packet buffer memory | 128 |
| Latentie (1 Gbps) | 2.6 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Geen |
