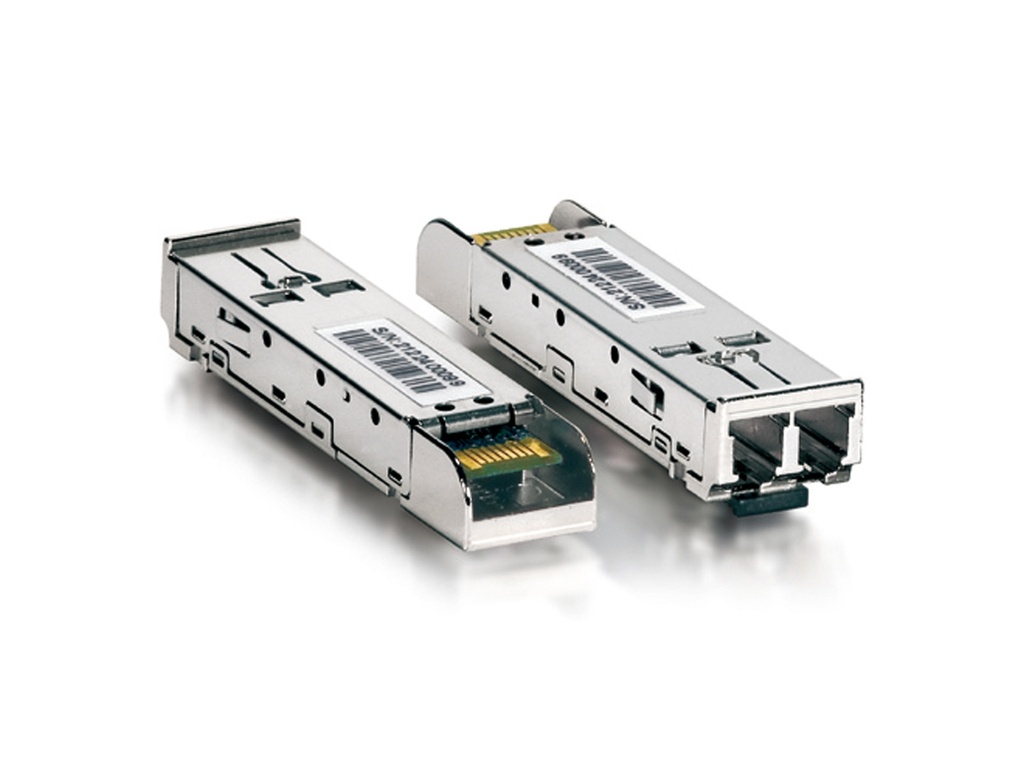

YY LevelOne Modul MiniGBIC SX/LC 550m

- Small Form Factor Pluggable MSA compliant
- For Multi-mode Applications
- Up to 850nm & 1.25Gbps
- Compliant for IEEE802.3z Gigabit Ethernet
- Easy to install and Hot-pluggable
- Connect switches up to 550m away with each other
- Single 3.3V power supply
- Duplex LC Connector
- TTL signal detect indicator
- EEPROM with serial ID functionality

Product Overview
The LevelOne GVT-0300 SFP (Small form-factor pluggable) fiber optic transceiver provides fullduplex connectivity over multi-mode fiber at distances up to 550 meters. GVT-0300 is designed for use in Gigabit Ethernet networks to provide an IEEE-802.3z-compliant link for 1.25 Gb/s speeds to serve short-range applications. GVT-0300 operates at a nominal wavelength of 850nm and complies with a Multi-Source Agreement (MSA) for compatibility between manufacturers. It comes with a click-and-latch
LC connector for a solid connection into the SFP port.

Multi-Purpose Usage
GVT-0300 can be used for distributed multiprocessing, switch-to-switch, converterto-switch, or converter-to converter interfaces, high-speed I/O file transfer, bus extension applications, and as a channel extender in data storage applications.

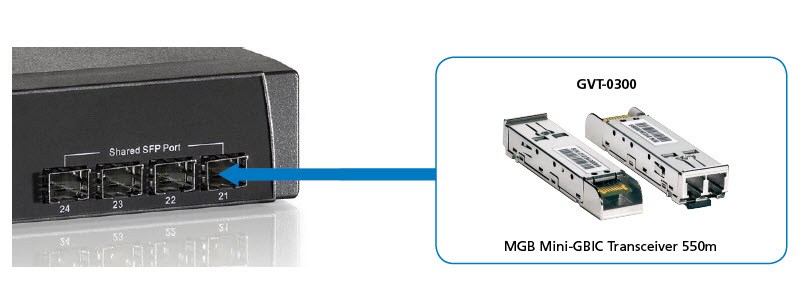

LevelOne GVT-0300 can be used in any LevelOne switch or converter that can accommodate SFP (Mini-GBIC) transceivers.
  • Bedrijfstemperatuur (T-T)
  • Relatieve vochtigheid in bedrijf (V-V)
  • Certificering
  • Breedte
  • Diepte
  • Hoogte
  • Breedte verpakking
  • Diepte verpakking
  • Hoogte verpakking
  • Code geharmoniseerd systeem (HS)
  • Quantity per pack
  • Country of origin
  • Fiber optic connector
  • Maximum data transfer rate
  • Interface type
  • Networking standards
  • SFP transceiver type
  • Maximum transfer distance
  • Tx vermogen (min)
  • Tx vermogen (max)
  • Input voltage
  • Multi-mode glasvezelkabel (MMF) ondersteund
  • SFP-zendernorm
  • Wavelength
  • Hot-plug ondersteuning
  • Maximaal voltage
  • Vezelkabel diameters ondersteund
  • Compatible products
  • Maximum current
  • Link budget
Aan winkelmandje toevoegen
Toevoegen aan verlanglijst
Prijs
54,27 € 54,27 €

Algemene voorwaarden
Geld-terug-garantie van 30 dagen
Verzending: 2-3 werkdagen

Specificaties

Netwerk
Networking standards IEEE 802.3z
Poorten & interfaces
Fiber optic connector LC
Interface type SFP
Energie
Input voltage 3.5
Maximaal voltage 6
Gewicht en omvang
Breedte 13.4
Diepte 56.6
Hoogte 8.4
Kenmerken
Quantity per pack 1
Country of origin Taiwan
Maximum data transfer rate 1250
Hot-plug ondersteuning Ja
Compatible products GSW-2453 GVT-4000
Maximum current 0.3
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 70
Relatieve vochtigheid in bedrijf (V-V) 5 - 90
Certificaten
Certificering Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11
Verpakking
Breedte verpakking 155
Diepte verpakking 50
Hoogte verpakking 230
Logistieke gegevens
Code geharmoniseerd systeem (HS) 85369010
Prestatie
SFP transceiver type Fiber optic
Maximum transfer distance 550
Tx vermogen (min) -9.5
Tx vermogen (max) -4
Multi-mode glasvezelkabel (MMF) ondersteund Ja
SFP-zendernorm SX
Wavelength 850
Vezelkabel diameters ondersteund 50/125,62.5/125
Link budget 8.5
